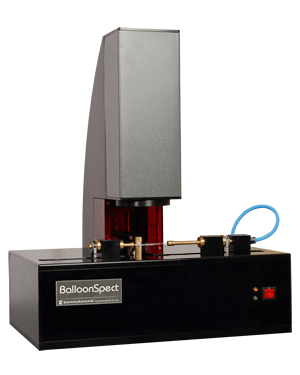

BalloonSpect

Features

• Fully automatic non contact, accurate and repeatable balloon geometry inspection system
• Measures diameter, cone angle and wall thickness of balloon
• Color coded graphical presentation of profile diameter measurement
• Refine manufacturing or QC process through graphical SPC analytical report

Specification

• Measures balloon up to 60 mm length (other options available)
• Measures balloon up to 15 mm diameter (other options available)
• Profile measurement accuracy: Better than 6 micron
• Wall thickness measurement range: 0.5 to 70 micron (Single side)
• Wall thickness measurement accuracy: Greater of 0.5% or 0.05 micron

*specifications are subject to change without prior notice
